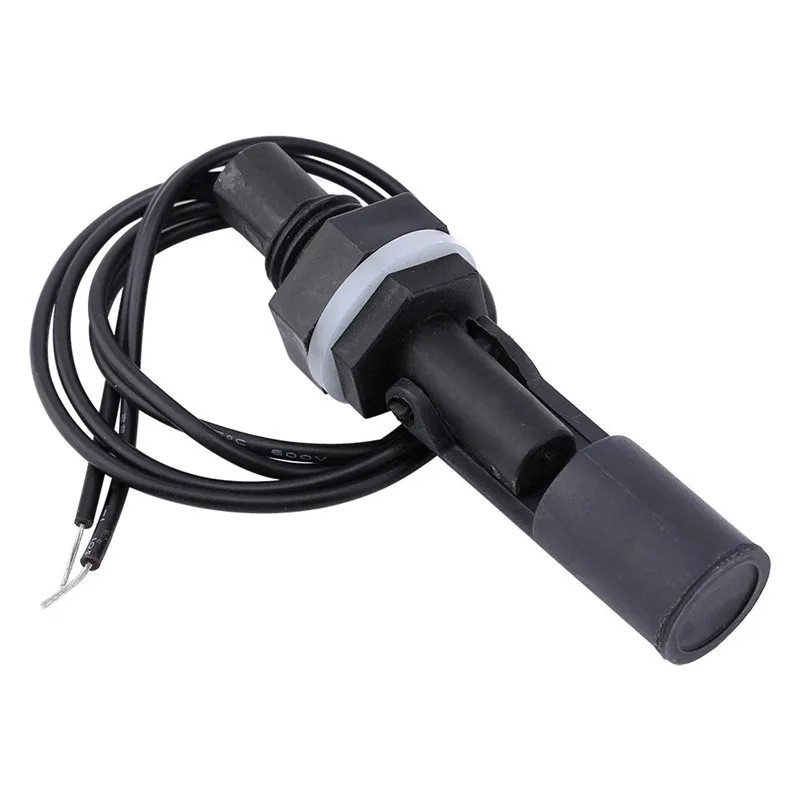

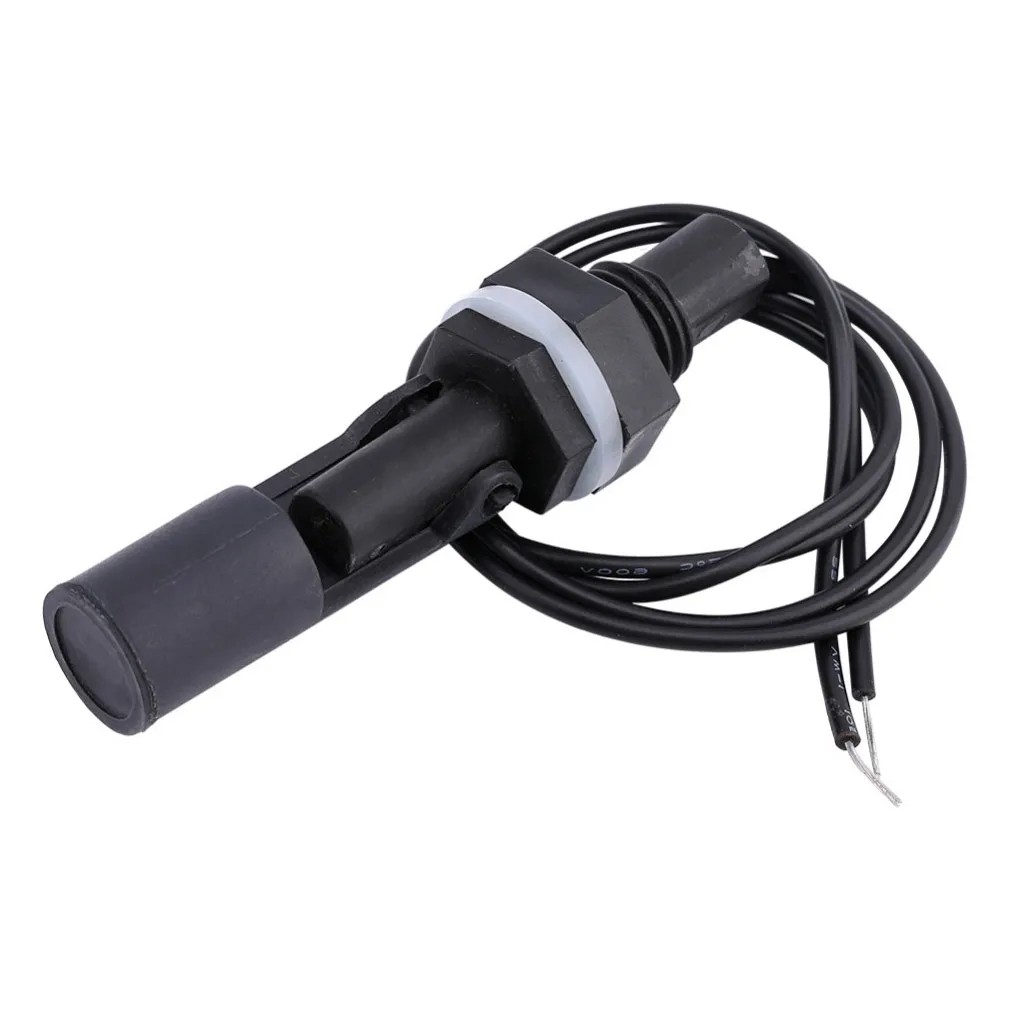

Horisontal side float switch for water level PP plastic thread M16, 110V DC 0.5A, cable 350 mm, for aquariums and tanks, black

Float switch with horizontal arrangement is mounted on the side of the tank wall and serves for automatic detection of liquid level. When the level changes, the float tilts around the pivot and the magnet inside activates the reed contact in the body, thereby controlling the connected device - pump, alarm, topping up or signaling. The PP plastic construction with a sealing o-ring ensures waterproof installation and resistance to mildly chemical liquids. The sensor operates passively, without its own power supply, and is particularly suitable for aquariums, hydroponic systems, and small tanks where there is no space for a traditional vertical float.

  • Side mounting into a hole in the tank wall - ideal where a vertical float cannot be placed
  • Polypropylene PP body resistant to moisture and mildly chemical liquids

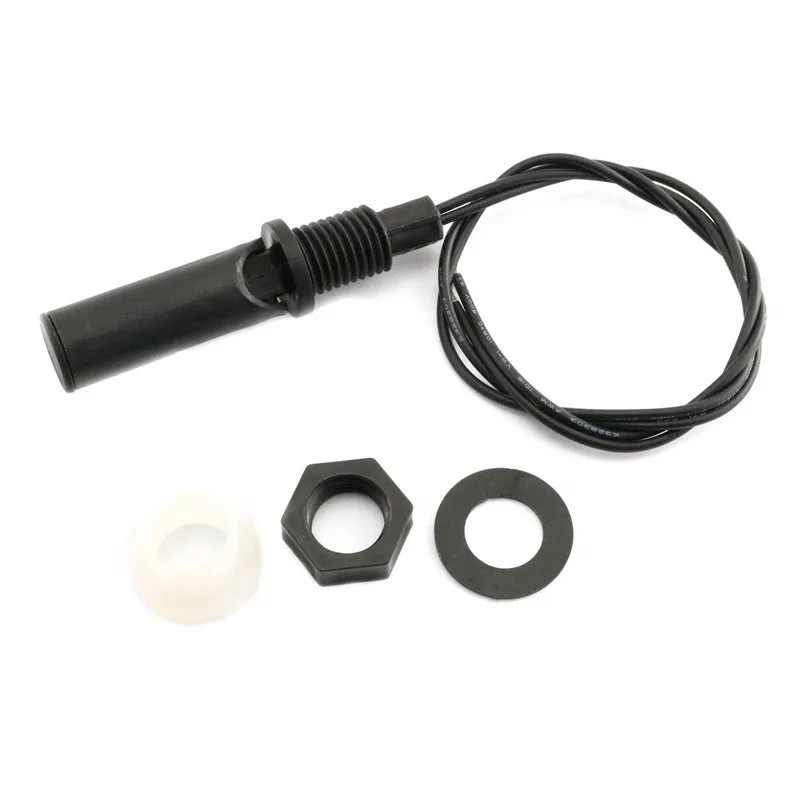

  • Thread M16 with nut and sealing o-ring for waterproof fastening
  • Switching voltage up to 110V DC, current up to 0.5 A, switching power up to 10 W
  • Cable length approximately 350 mm, easy connection to the circuit

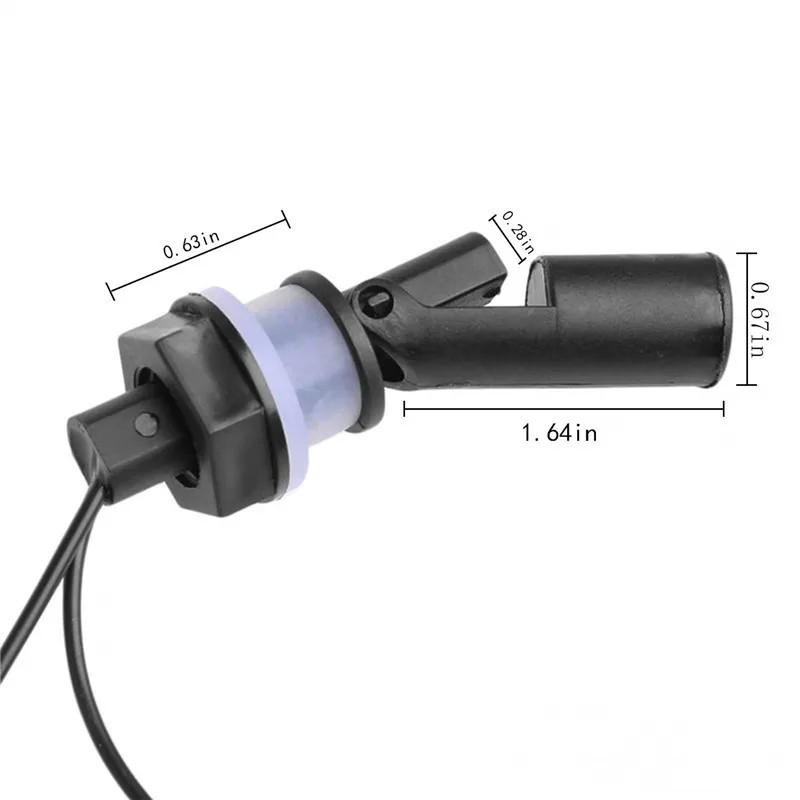

  • Body dimensions 92.5 x 40 mm, float diameter 17.5 mm
  • Operating temperature -10 to +60 °C
  • Maximum breakdown voltage 220V DC
  • Black matte plastic design with sealing washer ring
  • Passive reed contact without the need for its own power supply for the sensor
  • Package contents: 1x float switch

The side float switch is a popular solution in aquaristics, hydroponics, and small technological tanks where precise control of water level is required without the sensor resting on the bottom. The float rotates on the pivot at a small angle and in the extreme position sends a short switching signal - it can be used for automatic topping up of evaporated water, protecting the pump from running dry, signaling overflow of a marine aquarium, and controlling pumps in hydroponics. For proper function, it is important to connect the switch via a relay so that the direct breakdown current does not exceed the maximum switching value. Compact dimensions and easy side mounting make it a universal part for DIY home automation projects for filling and emptying tanks. The sensor operates maintenance-free for a long time and withstands hundreds of thousands of activations without wear.
